Einzigartige Features
Hervorragende Produktivität
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- USB4 Type-C Ports (40 Gb/s)
Solide Haltbarkeit
- 16+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Vergrößerte Kühlkörperabdeckung
- Flexible integrierte E/A-Abschirmung
Ultraschnelle Konnektivität
- 2.5G LAN, 802.11be Wi-Fi 7 Module
EZ-Update
- BIOS Flashback Button
- ASRock Auto-Treiber-Installer
EZ Troubleshooter
- ASRock Post Status Checker

CPU
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Chipsatz
- AMD X870

Arbeitsspeicher
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
- Max. capacity of system memory: 256GB
- Supports Extreme Speicherprofile (XMP) and EXTended Profile für Übertaktung (EXPO) memory modules

BIOS
- 512Mb AMI UEFI Legal BIOS with GUI support

Grafik
Integrated AMD RDNA™ graphics (Die Unterstützung kann je nach CPU variieren)
- 1 x HDMI 2.1 TMDS/FRL 8G Kompatibel, supports HDR, HDCP 2.3 and max. Auflösung up to 4K 120Hz
- 2 x USB4, support HDCP 2.3 and max. Auflösung up to 8K 30Hz*

Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio

LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control

Drahtloses LAN
- 802.11be 2x2 Wi-Fi 7 Module
- Supports IEEE 802.11a/b/g/n/ac/ax/be
- Supports 2.4GHz/5GHz/6GHz frequency band*
- Supports 160MHz channel bandwidth with 6GHz frequency band

- 1 Antenne zur Unterstützung von 2 (Senden) x 2 (Empfangen) Diversity-Technologie
- Supports Bluetooth 5.4
- Supports MU-MIMO

Steckplätze
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x1 mode
- 1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- Supports AMD CrossFire™

Speicherplatz
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
- 1 x M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 4 x SATA3 6.0 Gb/s Connectors

RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA Speichergeräte
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe Speichergeräte*

USB
CPU:
- 2 x USB4 Type-C (Rear)
- 2 x USB 3.2 Gen2 Type-A (Rear)
Chipset:
- 1 x USB 3.2 Gen1 Type-C (Front)
- 5 x USB 3.2 Gen1 Type-A (1 Rear, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)

Anschluss
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header
- 3 x Addressable LED Headers
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header

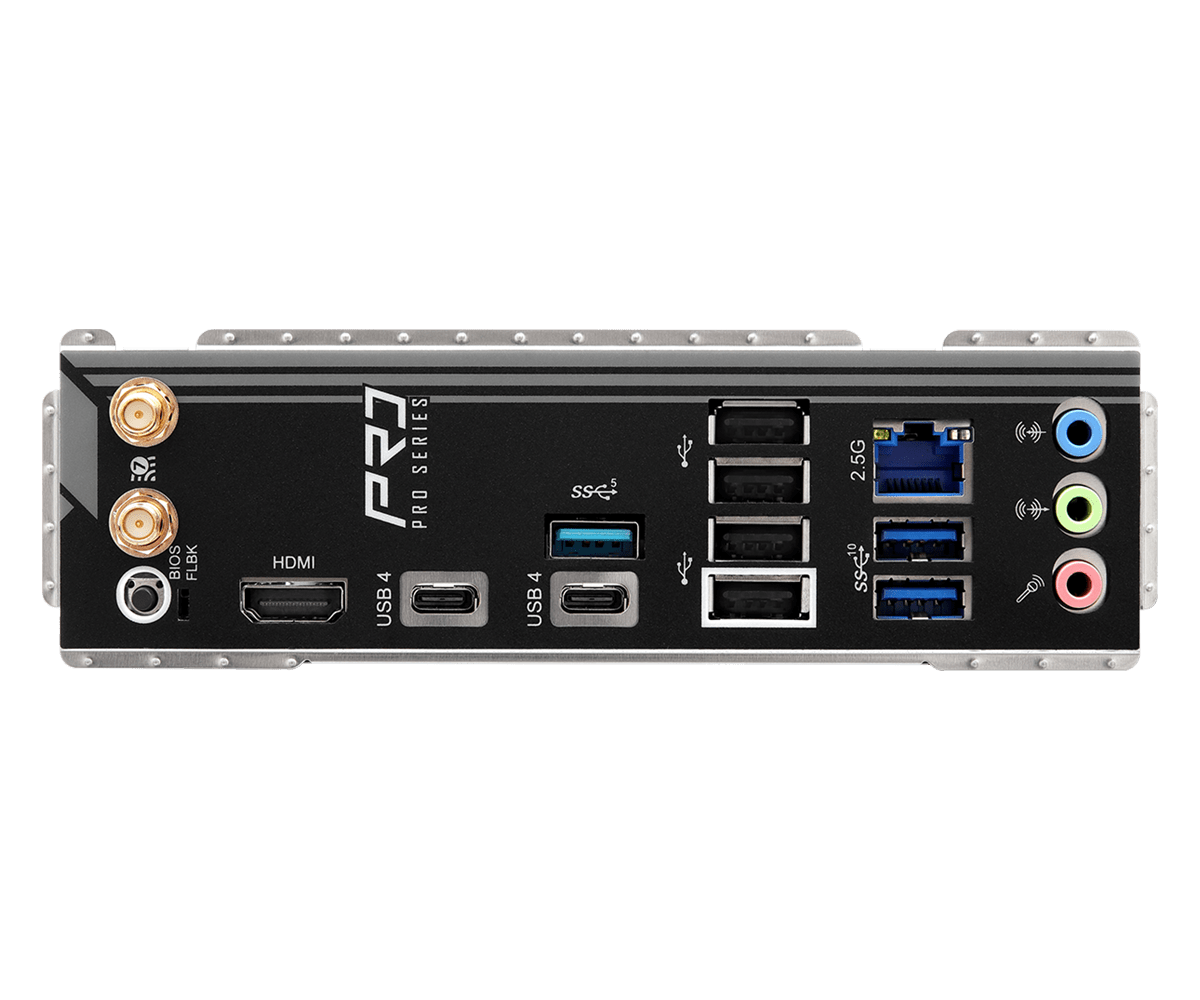

Blende
- 2 x Antenna Ports
- 1 x HDMI Port
- 2 x USB4 Type-C Ports (40 Gb/s)
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
- 1 x USB 3.2 Gen1 Type-A Port
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone


Software und UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto-Treiber-Installer
- ASRock Sofort-Flash

Produktzubehör
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 1 x ARGB Splitter Cable

Formfaktor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB

Betriebssystem
- Microsoft® Windows® 10 64-bit / 11 64-bit

Zertifizierungen
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
- CEC Tier II ready
