CPU
- Unterstützt AMD® Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors, bis zu 65W
Kühlung
- Unterstützt AMD® AM4/AM5 CPU Cooler (maximale Höhe ≦ 54mm)
Arbeitsspeicher
- Unterstützt Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM slots (maximal 256GB)
- Unterstützt DDR5 ECC/non-ECC, un-buffered memory bis zu 7200+(OC)
Chipsatz
- AMD® X600
Grafik
- Unterstützt a discrete Graphics card bis zu 20CM
Sound
- Realtek ALC897 Audio Codec
LAN
- 2.5 Gigabit LAN (Dragon RTL8125BG)
Speicherplatz
- 2 x SATA3 6.0Gb/s ports
- 1 x Blazing M.2 Socket (M2_1), Unterstützt type 2280 PCIe Gen5x4 (128 Gb/s) modes
- 1 x Hyper M.2 Sockel (M2_2), unterstützt Typ 2280 PCIe Gen4x4 (64 Gb/s) Modus
Steckplätze
- 1 x PCIe 4.0 x 16
- 1 x M.2-Slot (Key E 2230) für WLAN+BT-Modul

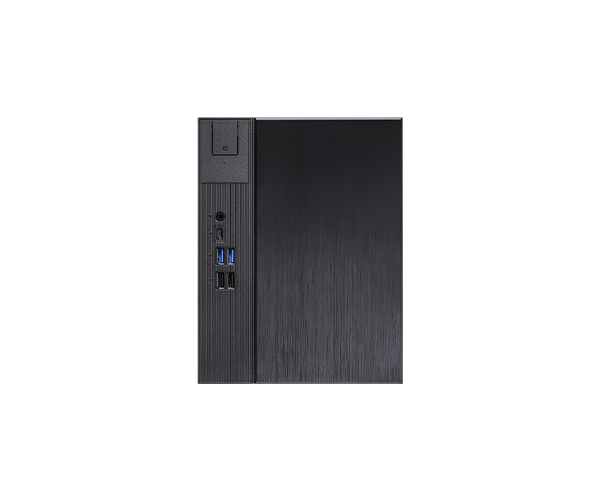

Front I/O
- 1 x Kopfhörer/Headset-Buchse
- 1 x USB 3.2 Gen1 Type-C
- 2 x USB 3.2 Gen1 Type-A
- 2 x USB 2.0 Type-A

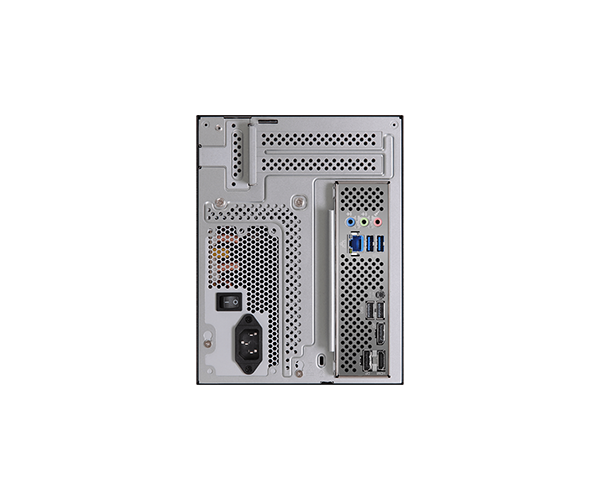

Rear I/O
- 2 x DisplayPort 1.4
- 1 x HDMI
- 2 x USB 2.0 Type-A
- 2 x USB 3.2 Gen1 Type-A
- 1 x RJ-45 LAN Port
- BIOS Flashback Switch
- HD Audio Jacks: Line-In / Front-Lautsprecher / Mikrofon
Anschluss
- 1 x Gehäuseeingriff-Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis/Water Pump Fan Connector (4-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front-Panel-Header
- 1 x USB-2.0-Header (Unterstützt 2 USB 2.0-Anschlüsse) (Unterstützt ESD Protection)
Volume (liters)
- 8L
Power Unit
- 500-W-Netzteil (80+ Bronze, Peak 550 W)
Produktzubehör
- Quick Installation Guide
- 2 x SATA Data Cables
- 1 x Paket mit Schrauben
Dimension
- 168 (W) x 219.3 (D) x 218.3(H) mm (Unterstützt ESD-Schutz)
- 168 (W) x 236.1 (D) x 221.6(H) mm (inkl. Überstände)
OS
- Konform zu Microsoft® Windows 10 64-bit / 11 64-bit
Alle Angaben ohne Gewähr, Änderungen und Irrtum vorbehalten
