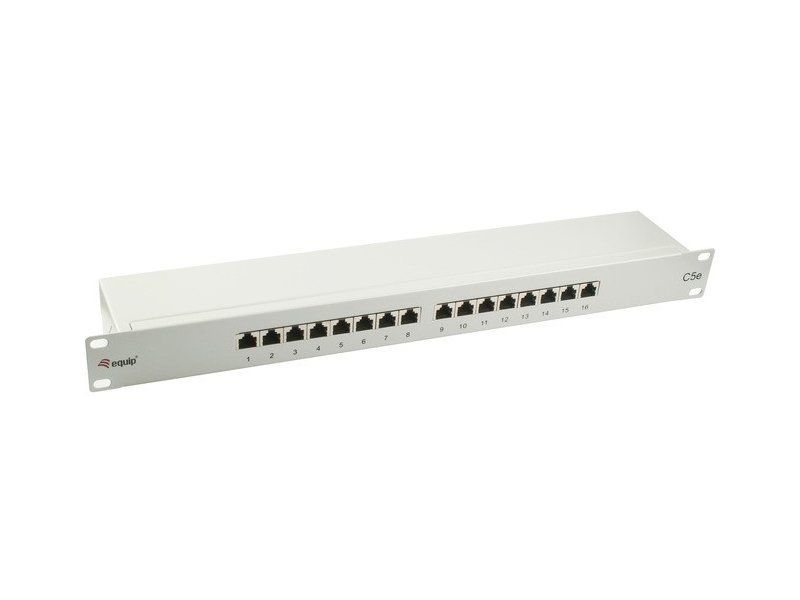

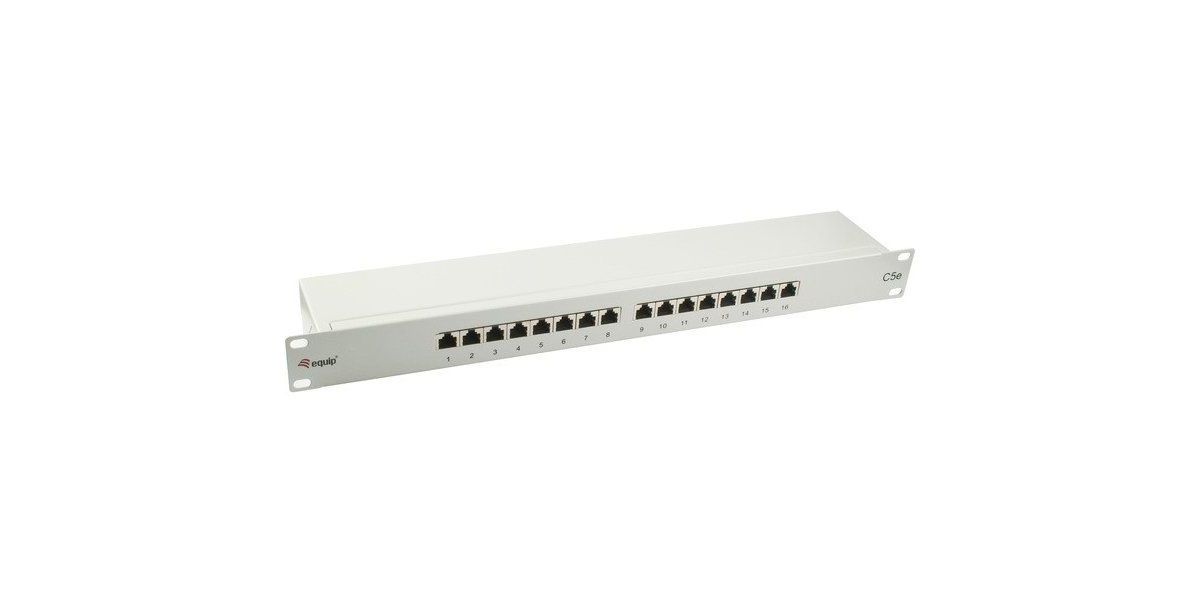

The equip® Patch Panel is a 19" 1U network distribution unit integrating cable management system for better routing and strain relief requirements, suitable for both LSA and 110 standards. Featuring 16 shielded RJ45 ports, this patch panel is recommended to connect with equip® shielded patch cords and cabling accessories to achieve outstanding performance. Moreover, each port is marked with port number for recognition.
19", 1U
16 Ports x Cat.5e RJ45
Shielded
Class D, up to 1000MHz, 10/100Base-T, 1GBase-T
ISO/IEC 11801 and EN 50173
Compliant with ANSI/TIA/EIA 568 standard
IDC T568A/T568B Color Coded
Dual IDC (LSA and 110) compatible
Material: Sturdy Steel
Color: Light Grey (RAL 7035)
Logistikdaten
Warentarifnummer (HS)
85371098
Technische Details
Konformitätsbescheinigungen
RoHS
Netzwerk
unterstütze Kabeltypen
Cat5e
Beschichtung Steckerkontakte
Gold
Ethernet Schnittstellen Typ
Schnelles Ethernet, Gigabit Ethernet
Verkabelungstechnologie
10/100/1000Base-T(X)
